A

Pump

33
45
46
32
34
900
60
13
17
18
25
2

B

Direct Clutch

43
29
35
28
63

C

Forward Clutch

30
31
65
47
6
64
70
74

D

Front Planet Set

54
48
37
79
37
79
36

E

Rear Planet & Band

49
44
38
50
51

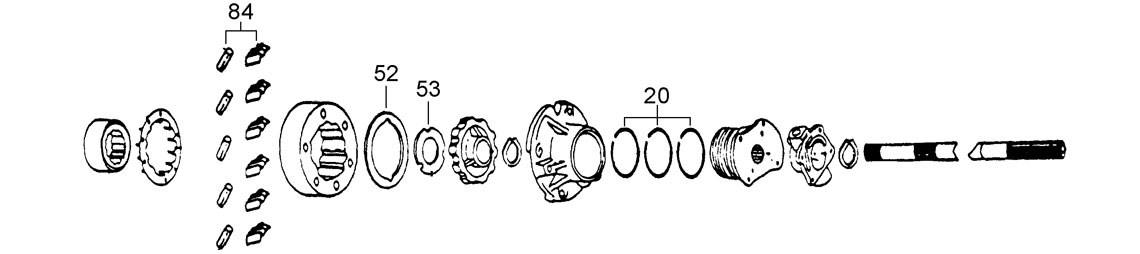

F

One Way Clutch & Output Shaft

20
53
52
84

G

Case, Pan, Filter & Servos

41
40
42
9
94
12
14
39
27
1
69
960

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44002K Overhaul Kit C4 Transtec 64-69 1
Kit 44002K-1 Gasket & Rubber Kit C4 Transtec 64-69 1
Kit 44002KA Overhaul Kit SAP 64-69 Alt
Kit 44003KA Overhaul Kit Precision 77-81 1
Kit 44004K Overhaul Kit C4 Transtec 70-81 1
Kit 44004K-1 Gasket & Rubber Kit C4 Transtec 70-81 1
Kit 44004K-1A Gasket & Rubber Kit Precision 70-81 Alt
Kit 44004KA Overhaul Kit Driveline 70-81 Alt
Kit 44004KP Overhaul Kit Precision 70-81 Alt
Kit 44004KT Overhaul Kit Teflon Rings Transtec 70-81 1
Kit 44010K Overhaul Kit C4, C5* Transtec 82-86 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44002KM Master Kit C4 64-69 1
Kit 44004KM Master Kit C4 70-81 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44150K Pump Leak Kit 64-86 1
1G 44100 Pan Gasket Cork 64-86 1
1G 44101 Pan Gasket Duraprene 64-86 Alt
1G 44101F Pan Gasket Farpark 64-86 1
2A 44102 Front Pump 64-86 1
12G 44108 Intermediate (Front) Servo 64-86 1
14G 44106 Extension Housing 64-86 1
NI 44110 Valve Body (C4) 70-86 Alt
NI 44112 Valve Body (C4) 70-81 Alt

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44172K Replacement Seal Kit for 44570K 64-86 1
Kit 44174K Lip Seal Retrokit Kit for 44570K 64-86 1
6C 44180 Forward Clutch Outer Lip Seal 78-86 1
9G 44162 Rear Servo Cover Seal 64-86 1
13A 44150 Front Pump O Ring 64-66 1
NI 33199 Filler Tube O Ring 64-86 1
NI 35173 Speedo Cable O Ring 64-86 1
NI 44170 Lathe Cut Seal Direct Clutch Outer (C4) 64-86 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
25A 44200 Front Pump Without Flange 49 ID x 69.8 OD x 9.40mm 64-86 1
27G 33206 Extension Housing Without Boot 36.5 ID x 60.5 OD x 12.00mm 64-86 1
27G 44206B Extension Housing With Boot 36 x 60.40 x 11.80mm with Boot 64-86 Alt
NI 44160 Throttle Valve Lever Quad Seal 9.6 ID x 14.5 OD x 2.5mm 64-86 1
NI 44208 Output Shaft Seal 64-86 1
NI 44210 Selector Shaft Seal 18.5 ID x 27.2 OD x 5.30mm 64-86 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44250K Sealing Ring Kit 64-69 1
Kit 44250KA Sealing Ring Kit 64-69 Alt
Kit 44252K Sealing Ring Kit 70-78 1
Kit 44252KT Sealing Ring Kit Teflon Rings 70-86 Alt
Kit 44252KTA Sealing Ring Kit, Teflon Rings 70-86 Alt
Kit 44254K Sealing Ring Kit 79-86 1
17A 44262 Pump to Direct Clutch 64-69 2
18A 44270 Pump to Forward Clutch 70-78 2
18A 44272 Pump to Forward Clutch 78-86 2
20F 44275 Governor Hub 64-86 3

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44300K Friction Module (C4) 64-86 1
Kit 44300KD Friction Module (Exedy) 64-86 1
Kit 44302K Power Pack Direct 6 Plates (C4) 64-86 1
Kit 44306K Friction Module Raybestos Stage 1 (C4) 64-86 1
28B 44310 Direct (Front) Borg Warner, Groved 116 OD x 2.00mm x 42T 65-86 3-5
28B 44310A Direct Clutch Friction 116 OD x 2.00mm x 42T 65-86 Alt
28B 44310H Direct (Front) Alto Red Eagle 116 OD x 2.00mm x 42T 65-86 3-5
28B 44314HP Direct (Front) Raybestos Blue 116 OD x 1.60mm x 42T 65-86 3-5
30C 44312 Forward (Rear) Borg Warner, Smooth 116 OD x 1.60mm x 42T 64-86 3-5
30C 44312A Forward Clutch Friction Plate 116 OD x 1.50mm x 42T 64-86 Alt
30C 44312H Forward (Rear) Alto Red Eagle 116 OD x 1.60mm x 42T 64-86 3-5
30C 44314H Forward & Direct Friction, Raybestos, Stage 1, Red, Groved 116 OD x 1.60mm x 42T 64-86 AR
NI 44315H FRICTION FWD & DIRECT (C4) WAFFLE RED 116 OD x 2.00mm x 42T

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
29B 44362 Direct (Front) 91.4 ID x 2.00mm x 26T 64-86 3-5
29B 44362A Direct (Front) 91.4 ID x 2.30mm x 26T 64-86 AR
29B 44362X Direct Oversize (2.40mm) 91.4 ID x 2.40mm x 26T 64-86 AR
29B 44362X Direct (C5) 91.4 ID x 2.40mm x 26T 82-86 4-5
29B 44363S Direct Clutch Steel Plate 91.4 ID x 1.50mm x 26T 64-86 Alt
29B 44363SK Direct Clutch Steel Plate, Kolene 91.4 ID x 1.50mm x 26T 64-86 Alt
29B 44364HP Direct Kolene 91.4 ID x 2.00mm x 26T 64-86 AR
29B 44364HPXK Direct Clutch Steel Plate, Kolene 91.3 ID x 2.30mm x 26/28T 64-86 Alt
31C 44362 Forward (Rear) 91.4 ID x 2.00mm x 26T 64-86 3-5
31C 44362A Forward (Rear) 91.4 ID x 2.30mm x 26T 64-86 AR
31C 44362X Forward Oversize (2.40mm) 91.4 ID x 2.40mm x 26T 64-86 AR
31C 44363S Forward Clutch Steel Plate 91.4 ID x 1.50mm x 26T 64-86 Alt
31C 44363SK Forward Clutch Steel Plate, Kolene 91.4 ID x 1.50mm x 26T 64-86 Alt
31C 44364HP Forward Kolene 91.4 ID x 2.00mm x 26T 64-86 3-5
31C 44364HPXK Forward Clutch Steel Plate, Kolene 91.3 ID x 2.30mm x 26/28T 64-86 Alt
63B 44394U Direct Pressure Plate 28T 5.60mm 91.4 ID x 5.60mm x 28T 64-86 1
64C 44392AU Forward Pressure Plate (Used) 91.4 ID x 3.00mm x 26T 64-86 1
64C 44392CU Forward Pressure Plate (Used) 91.4 ID x 6.75mm x 26T 64-86 1
64C 44392EU Forward Pressure Plate (Used) 91.4 ID x 7.95mm x 26T 64-86 1
65C 44394U Forward Clutch Pressure Plate 28T 5.60mm 91.4 ID x 5.60mm x 28T 64-86 AR

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44400K Bush Kit C4 64-69 1
Kit 44402K Bush Kit C4 & C5 70-86 1
32A 44410 Front Pump Bronze 64-86 1
32A 44410A Front Pump Babbit 64-86 Alt
33A 44412 Stator Support Front 64-69 1
33A 44416 Stator Support Front 70-86 1
34A 44418 Stator Support Rear 70-86 1
35B 44420 Direct Clutch Drum 64-69 1
35B 44422 Direct Clutch Drum 70-86 1
36D 44426 Forward Clutch Hub 70-86 1
37D 44424 Sungear 64-86 2
38E 44428 Low & Reverse Drum 64-86 1
39G 44430 Case 64-86 1
40G 24440 Extension Housing Bronze 64-86 Alt
40G 44432 Extension Housing Babbit 38.2 ID x 41.3 OD x 38.00mm 64-86 1
NI 44440 Gear Linkage Bush (.4840” O.D.) 64-86 1
NI 44442 Gear Linkage Bush (.5310” O.D.) 64-86 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44452K Thrust Washer Kit 70-86 1
45A 44460A Front Pump to Direct Clutch Drum Selective (Plastic) #0 .055” 66-86 AR
45A 44460B Front Pump to Direct Clutch Drum Selective (Plastic) #1 .072” 66-86 AR
45A 44460C Front Pump to Direct Clutch Drum Selective (Plastic) #2 .089” 66-86 AR
45A 44460D Front Pump to Direct Clutch Drum Selective (Plastic) #3 .106” 66-86 AR
45A 44460E Front Pump to Direct Clutch Drum Selective (Plastic) #4 .123” 66-86 AR
45A 44460F Front Pump to Direct Clutch Drum Selective (Plastic) #5 .140” 66-86 AR
46A 44462A Stator to Forward Clutch Drum Selective (Bronze) #1 .042” 64-86 AR
46A 44462B Stator to Forward Clutch Drum Selective (Bronze) #2 .057” 64-86 AR
46A 44462C Stator to Forward Clutch Drum Selective (Bronze) #3 .074” 64-86 AR
46A 44462D Stator to Forward Clutch Drum Selective (Bronze) #4 .091" 64-86 AR
47C 44464A Forward Clutch Hub 70-86 1
48D 44474 Front Planet (Front) 64-86 1
49E 44470A Rear Planet (Front) 2-3/32” I.D. 72-86 1
49E 44474 Rear Planet (Front) 64-71 1
52F 44478 One Way Clutch Race to Case 64-86 1
53F 44480 Case to Parking Gear Thrust 64-86 1
54D 44476 Front Planet (Rear) 1 Piece Bearing Replaces 3 Piece Original Bearing 64-86 1
NI 46472A Output Shaft Hub Washer 70-86 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
43B 44502 Intermediate Flex (Replaces Solid) 64-86 1
43B 44502P Intermediate Band (Raybestos) Pro Series 64-86 Alt
43B 44502R Intermediate Band (C4) Red Eagle 64-86 1
43B 44506R Intermediate Solid Band (C4) Red Eagle 64-86 1
43B 44508 Intermediate “Snap Band” Can Be Fitted without Removal of Transmission 68-86 1
44E 44510 Low & Reverse Band 64-86 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
42G 44553 Filter, Shallow Pan 64-69 1
42G 44554 Filter 64-69 1
42G 44556 Filter 70-86 1
42G 44560 Filter Deep Pick Up 73-81 1
42G 44562 Filter 4WD Bronco with Tube 73-77 1
42G 44564 Filter C5 82-86 1
42G 44565 Filter, C5, Deep Pan 82-86 Alt
NI 33574 Governor Filter Screen 64-ON 1
NI 44556D Filter Ford C4 Dacron 71-ON Alt

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44554K Filter Kit 64-69 1
Kit 44556K Filter Kit 70-86 1
Kit 44560K Filter Kit Deep Pick Up 73-81 1
Kit 44562K Filter Kit 4WD Bronco with Tube 73-77 1
Kit 44564K Filter Kit C5 82-86 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44570K “C” Ratio Front Servo Piston 64-86 1
94G 44580 Low & Reverse (Rear) Servo Piston 91mm 64-86 1

modulators

NO PART # DESCRIPTION SIZE YEARS QTY
41G 44600 Modulator (Screw in) 64-72 1
41G 44602 Modulator (Push In) Green Stripe 74-86 1
41G 44604 Modulator (Push In) Yellow Stripe 73-81 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44652K Sprag Assembly With Cage 64-86 1
Kit 44680 Poppet Valve and Spring Kit 64-ON 1
70C 44670 Forward Clutch Diaphragm Spring 64-86 1
84F 44650K Spring & Roller Kit 64-78 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 44700A Inhibitor Switch* 64-86 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 38788K Vacuum Boost By-Pass Kit 64-86 1
Kit 44750-4 Nut Converter, Pack of 4 64-86 1
Kit 44970-2 Band Adjusting Nut, Pack of 2 64-80 1
69G 49735 Modulator Hose Elbow 64-86 1
NI 30450 Speedo Driven Gear 17T Green 64-86 AR
NI 30452 Speedo Driven Gear 19T Tan 64-86 AR
NI 30456 Speedo Driven Gear 21T Purple 64-86 AR
NI 44116 Valve Body Check Ball 67-86 AR
NI 44750 Converter Nut 64-86 4
NI 44752 Speedo Drive Gear Retainer Clip (Ford) 64-86 1
NI 44755 Elbow Fitting for Cooler Line 64-81 1
NI 44758 Filler Tube & Dipstick Screw In 64-86 1
NI 44820 Kickdown Cable 64-86 1
NI 44970 Band Adjusting Nut (Coarse Thread) 64-80 2
NI 44972 Band Adjusting Nut Fine Thread 81-86 2
NI 46786K Lube Drain Back Valve 64-86 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 44800K Shift Kit 1964 1
Kit 44801K Shift Kit All except Mustang 65-66 1
Kit 44802K Shift Kit V8 67-69 1
Kit 44804K Shift Kit (Screw in Modulator) 70-72 1
Kit 44806K Shift Kit (Push in Modulator) 73-86 1
Kit 44809K Reprogramme Kit 65-66 1
Kit 44810K Reprogramme Kit 67-69 1
Kit 44812K Reprogramming Kit with Manual Shift Control 67-69 1
Kit 44814K Reprogramme Kit 70-83 1
Kit 44815K Shift Correction Package Superior (C4) Stage 2 64-86 1
Kit 44816K Full Manual Shift Kit 70-83 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
60A 44902 Pump Gear Set 64-86 1
79D 44921 Front Planet, 6 Pinion 64-86 1
960G 44960 Alloy Pan Deep - Case Fill C4 64-ON 1
960G 44960B Alloy Pan Deep - Pan Fill C4 64-ON 1
NI 21960 Rear Mount Falcon 64-86 1
NI 44932 Oil Distributor Sleeve 64-86 1
NI 49106 Drive Plate V8 13-1/4” Diameter With Weight 157 Teeth 289, 302 Engine 64-ON 1
NI 49110 Drive Plate V8 14-1/4” Diameter With Weight 164 Teeth 302, 351 Engine 64-ON 1
NI 49125 Drive Plate 6 Cyl 13-1/4” Diameter 157 Teeth 250 Engine 64-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49700 Aluminium Blast Spray Paint 64-86 AR
NI 49701 Black Spray Paint 64-86 AR
NI 49702 Cast Blast Spray Paint 64-86 AR
NI 49910 Lubegard Red (10oz) 64-86 1
NI 49994-04 Transmission ATF Type F, 4 Litre Pack 64-86 AR
NI 49999-04 ATF DX III 4 Litre 64-86 AR

For Vehicles with Shift concerns or for Performance Applications Type F (49994-04) may be used
