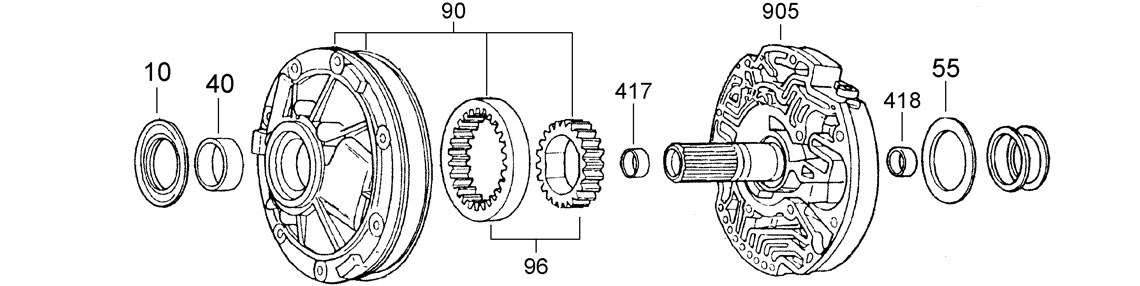

A

Pump

417
418
90
96
10
40
55
905

B

Overrun & 4th Clutches

91
41
42
79
52
396
92
80
30
31
32
33
93

C

Forward Clutch

94
81
95
57
58
56
83
34
35
413

D

Direct Clutch

72
397
96
84
36
37
82
85

E

Intermediate Clutch & Centre Support

39
43
86
54
38
59
968

F

Planet Sets

73
46
88
97
64
45
45

G

Output Shaft

47
68
65

H

Case, Servos, Pan & Filter

48
3
83
2
9
49
8
99
12
13
11
1
76

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 38000K Overhaul Kit 4L80E, 4L85E Transtec 91-ON 1
Kit 38001KA Overhaul Kit SAP 91-96 Alt
Kit 38002K Overhaul Kit SAP 97-ON 1

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 38000KM Master Kit 4L80E 91-96 1
Kit 38002KM Master Kit 4L80E 97-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 38120K Valve Body Gasket Kit 91-ON 1
Kit 38150K Pump Leak Kit 91-ON 1
1H 38100 Pan Gasket Except Jaguar Cork 91-ON Alt
1H 38100MR Pan Gasket Except Jaguar OE Gasket 91-ON 1
1H 38101 Pan Gasket Except Jaguar Duraprene 91-ON Alt
1H 38101F Pan Gasket Except Jaguar Farpark 91-ON Alt
1H 38102 Pan Gasket Jaguar Duraprene 93-ON 1
1H 38102F Pan Gasket Jaguar, Farpak 91-ON Alt
2H 38110 Front Pump Gasket 91-ON 1
3H 38112 Servo Cover Gasket 91-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
8H 37150 Pump to Case Seal 91-ON 1
9H 36180 Extension Housing to Case O Ring 91-ON 1
13H 38210 Filter Seal 91-ON 1
NI 35172 Filler Tube Top Hat Seal 91-ON 1
NI 38162 Input Shaft O Ring 91-ON 1
NI 38170 Lip Seal Overdrive Inner 91-ON 1
NI 38172 Lip Seal Overdrive Outer 91-ON 1
NI 38180 Bonded Lip Seal & Sleeve Forward Inner 91-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 38200 Front Pump Seal 49 ID x 73.2 OD x 9.40mm 91-ON 1
11H 38220 SEAL REAR LUBE (4L80E) 50.4 ID x 67 OD x 7.50mm 91-ON 1
12H 36206 Extension Housing 41 ID x 63.7 OD x 15.00mm 91-ON 1
12H 36220 Extension Housing 48 ID x 68.7 OD x 14.80mm 91-ON 1
12H 38222 Extension Housing 52.8 ID x 73.3 OD x 14.90mm 91-ON 1
NI 35210 Selector Shaft 12 ID x 19.2 OD x 5.00mm 91-ON 1
NI 38212 Cooler Line Fitting to Center Support 91-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 38250K Sealing Ring Kit 91-ON 1
NI 38252 Sealing Ring Centre Support 91-ON 4

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 36360KG3 Forward Clutch Power Pack with G3 Plates 91-ON 1
Kit 36360KPP Direct Clutch Power Pack (Alto) 91-ON 1
Kit 38300KD Friction Module (Exedy) 91-ON Alt
Kit 38302K Friction Kit Gen 2 95-ON 1
Kit 38304K Friction Kit Gen I Hi Performance 91-95 1
Kit 38306K Friction Kit Gen 2 Hi Performance 95-ON 1
Kit 38306KGPZ Friction Kit, Gen 2 Raybestos 95-ON Alt
Kit 38330KHP 4th Clutch Friction Kit Red Stage 1 & 2 Alto 91-ON 1
30B 38332 Overrun 136 OD x 2.00mm x 45T 91-ON 4
30B 38332A Overrun Friction Plate 136 OD x 2.01mm x 45T 91-ON Alt
32B 38330 4th Clutch 185 OD x 2.00mm x 60T 91-ON 4
34C 36310 Forward Radial Groove 150 OD x 2.05mm x 42T 91-ON 4-5
34C 36314H Forward Heavy Duty 150 OD x 2.00mm x 42T 91-ON Alt
34C 38320 Forward Hi Energy 150 OD x 2.00mm x 42T 91-ON 4-5
36D 36312 Direct Smooth 150 OD x 2.05mm x 42T 91-ON 4-6
36D 36312D Direct Clutch Friction Plate (Smooth) Exedy 150 OD x 2.00mm x 42T H/ENERGY 91-ON 4-6
36D 36314H Direct Heavy Duty 150 OD x 2.00mm x 42T 91-ON Alt
36D 38320 Direct Hi Energy 150 OD x 2.00mm x 42T 91-ON 4-6
38E 36318A Intermediate Clutch Friction Plate 166.6 OD x 2.00mm x 47T 91-95 AR
38E 38334 Intermediate 167 OD x 2.00mm x 47T 91-95 4
38E 38334A Intermediate Friction Plate 167 OD x 2.00mm x 47T 91-95 Alt
38E 38336 Intermediate 167 OD x 1.78mm x 47T 96-ON 4
38E 38336D Intermediate Friction Plate 167 OD x 1.80mm x 47T 96-ON ALT
38E 38336H Intermediate Red 167 OD x 1.78mm x 47T 96-ON AR

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 38354K Steel Module Kolene 91-ON 1
31B 38392 Overrun 115 ID x 2.50mm x 14T 91-96 4
31B 38393 Overrun Turbulated 115 ID x 2.50mm x 14T 97-ON 4
33B 38390 4th Clutch 160 ID x 2.50mm x 8T 91-96 3
35C 36360 Forward 116.10 ID x 1.52mm x 14T 91-ON Alt
35C 36360K Forward 116.3 ID x 1.52mm x 14T 91-ON Alt
35C 36362 Forward 116 ID x 1.52mm x 14T 91-ON Alt
35C 36364 Forward 116 ID x 1.95mm x 12/14T 91-ON 4
35C 36364K Forward 116 ID x 1.95mm x 12T/14T 91-ON Alt
35C 36366 Forward 116 ID x 2.35mm x 12T 91-ON AR
37D 36360 Direct 116.10 ID x 1.52mm x 14T 91-ON Alt
37D 36360K Direct 116.3 ID x 1.52mm x 14T 91-ON Alt
37D 36362 Direct 116 ID x 1.52mm x 14T 91-ON Alt
37D 36364 Direct 116 ID x 1.95mm x 12/14T 91-ON AR
37D 36364K Direct 116 ID x 1.95mm x 12T/14T 91-ON Alt
37D 36366 Direct 116 ID x 2.35mm x 12T 91-ON 5
39E 38394 Intermediate 127 ID x 1.95mm x 21/22T 91-ON 4
52B 38395 Overrun Clutch Pressure Plate 4.20mm 115 ID x 4.20mm x 14T 91-ON 1
52B 38395U Overrun Clutch Pressure Plate (Used) 115 ID x 4.20mm x 14T 91-ON 1
54E 38398 Intermediate Pressure Plate With Lip 127 ID x 6.40/9.30mm x 18T 91-ON 1
54E 38398A Intermediate Pressure Plate 127 ID x 7.00mm x 18T 91-ON Alt
54E 38398AU Intermediate Pressure Plate With Lip (Used) 127 ID x 6.40/9.30mm x 18T 91-ON 1
54E 38399U Intermediate Pressure Plate Without Lip (Used) 127 ID x 7.00mm x 18T 99-ON 1
396B 38396U 4th Clutch Pressure Plate (Used) 160 ID x 8T 91-ON 1
397D 38397U Direct Pressure Plate (Used) 116 ID x 4.50mm x 14T 91-ON 1
NI 36366K STEEL FORWARD & DIRECT THICK (.090') KOL 116 ID x 2.30mm x 12/14T 91-ON Alt
NI 36366KT STEEL FORWARD & DIRECT THICK (.090') KOL 116 ID x 2.30mm x 12T 91-ON Alt

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 36423K Case Heavy Duty Bush Kit 91-ON 1
Kit 38400K Bush Kit 91-96 1
Kit 38402K Bush Kit 97-ON 1
40A 38410 Front Pump Bush 13.5mm Wide 91-96 1
40A 38412 Front Pump Bush 17.7mm Wide 97-ON 1
41B 38415 Overrun Drum Bush 91-ON 1
42B 36416 Overrun Clutch Drum Rear 91-ON 1
43E 38414 Centre Support With Centre lube circuit 97-ON 1
43E 38416 Centre Support Bush 97-ON 1
45F 36416 Sungear Shaft 91-96 2
45F 38419 Sungear Shaft Bush with Oil Grooves 97-ON 2
46F 36418 Reaction Carrier 91-ON 1
47G 38420 Output Shaft 91-ON 1
48H 36424 Case Bush Flanged Type 91-ON 1
49H 38440 Extension Housing 51.3 OD x 25.40mm 91-96 1
49H 38442 Extension Housing 48 ID x 51.5 OD x 25.40mm 97-ON 1
413C 38413 Forward Drum Bush 91-ON 1
417A 38417 Stator Front Bush 91-ON 1
418A 38418 Stator Rear Bush 91-ON 1
NI 38423 Rear Case Bush 91-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 38450K Thrust Washer Kit 91-ON 1
Kit 38452K Thrust Bearing Kit 91-ON 1
Kit 38454K Bearing Kit, Sonnax 91-ON 1
55A 38450 Pump Washer 91-ON AR
55A 38450A Pump Washer 91-ON AR
56C 38460 Overdrive Planet to Forward Drum 91-ON 1
57C 36462 Forward Clutch Hub to Forward Clutch Housing .060" 91-ON 1
58C 36464 Forward Clutch Hub to Direct Clutch Housing .060" 91-ON 1
59E 36466 Centre Support to Reaction Drum 91-ON 1
64F 36488 Front Internal Gear and Carrier 91-ON 1
65G 36488 Output Shaft 4 Tab Bronze 91-ON 1
68G 36490B Output Shaft to Case Rear Selective 2.13mm 2.13mm 91-ON AR
68G 36490C Output Shaft to Case Rear Selective 2.33mm 2.33mm 91-ON AR
68G 36490E Output Shaft to Case Rear Selective 2.74mm 2.47mm 91-ON AR
68G 36490F Output Shaft to Case Rear Selective 2.94mm 2.94mm 91-ON AR

bands

NO PART # DESCRIPTION SIZE YEARS QTY
72D 36500 Intermediate Overrun (Front) 25mm Wide with 64mm Servo Pin 91-98 1
72D 38500 Intermediate Overrun (Front) 30mm Wide with 69mm Servo Pin 99-ON 1
72D 38500H Intermediate Overrun Band, Heavy Duty 91-ON Alt
73F 36510 Low & Reverse (Rear) 91-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
76H 38550 Filter 91-96 1
76H 38552 Filter 97-ON 1
NI 38560 Pressure Control Solenoid Filter 91-ON 1
NI 38562 Shift Solenoid Filter 91-ON 1
NI 38564 TCC Solenoid Filter 91-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 38550K Filter Kit 91-96 1
Kit 38552K Filter Kit 97-ON 1
Kit 38553K Filter Kit Jaguar 93-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 36570K Adjustable Rear Servo Pin Kit 91-ON 1
80B 38570 Overrun Clutch Moulded Piston 91-ON 1
81C 38572 Forward Clutch Moulded Piston 91-ON 1
82D 38574 Direct Clutch Moulded Piston 91-ON 1
82D 38576 Direct Clutch Piston - Alloy 91-ON 1
83H 38582 Front Servo Piston Assembly 69.34mm Long Pin allows use of early High Energy Band 91-ON 1
NI 38573 Bonded Lip Seal and Sleeve .086" Orifice 91-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
86E 36640HS Intermediate Clutch Backing Plate Retaining Ring 91-ON 1
86E 38634 Intermediate Clutch circlip 91-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
79B 38656 Overdrive Roller Clutch 91-ON 1
79B 38657 One Way Clutch Overdrive 01-ON 1
83C 38660 Forward Clutch Belville Spring 91-ON 1
84D 38660 Direct Clutch Belville Spring 91-ON 1
85D 36684 Intermediate Clutch Sprag 91-ON 1
85D 36684H Intermediate Clutch Sprag Heavy Duty (Borg Warner) 91-ON Alt
85D 36684HA Intermediate Clutch Sprag Heavy Duty (Aftermarket) 91-ON Alt
88F 36682 Low Clutch Roller Assembly 91-95 1
88F 38658 Low Clutch Roller Assembly with 8 vertical tabs L95-ON 1
NI 38674 4th Accumulator Spring 91-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
NI 37704 Pressure Control Solenoid 04-ON 1
NI 37730 Inhibitor Switch One 7 Pin & one 4 Pin Connector 91-03 1
NI 37732 Inhibitor Switch One 11 Pin Pin Connector 04-ON 1
NI 38700 Pressure Control Solenoid 93-03 1
NI 38702 Input Speed Sensor 91-ON 1
NI 38702 Output Speed Sensor 91-ON 1
NI 38703 Shift Solenoid 1-2, 3.4 (Solenoid A) 91-ON 1
NI 38705A Shift Solenoid 2-3 (Solenoid B) 91-ON 1
NI 38706A TCC Solenoid 91-ON 1
NI 38708K Wiring Harness Connector Bracket 91-ON 1
NI 38710 Internal Wiring Harness (Exc Jaguar) 91-03 1
NI 38710A Internal Wiring Harness (Exc Jaguar) 04-ON 1
NI 38710B Internal Wiring Harness (Jaguar only) 91-0N 1
NI 38711 External Wiring Harness (20 pin) 91-ON 1
NI 38716 Pressure Switch Manifold 91-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 36766K Planetary Rebuild Kit Sonnax 91-ON 1
Kit 36767K Rubber Clutch Separator Pack to Use with 2mm Friction Plates Dia.: 0.103" 91-ON 1
Kit 36768K Rubber Clutch Separator Pack to Use with 1.50mm Friction Plates Dia.: 0.070" 91-ON 1
Kit 36770-10 Rear End Play Shim, Pack of 10 91-ON 1
Kit 38771K Actuator Feed Limit Valve Kit 91-ON 1
Kit 38780K TCC Regulator Valve Kit 91-ON 1
Kit 38783K Smart-Tech Overrun Clutch Valve Kit, Sonnax 91-ON 1
Kit 38784K Reverse Boost Valve & Sleeve Kit OEM Style 91-ON 1
Kit 38786K Reverse Boost Valve & Sleeve Kit Self Regulating 91-ON 1
Kit 38788K Vacuum Boost By-Pass Kit 91-ON 1
Kit 38790K O Ringed End Plug Kit 91-ON 1
Kit 49305K Valve Body Plate Repair Kit Fixes 5 Valve Body Holes Most Plates with 1/4” Holes 91-ON 1
NI 36760 1-2 Shift Valve Spring 91-ON 1
NI 36760 Manual Shaft Short Version 91-94 1
NI 36769-05 Forward & Direct Clutch Inner Snap Ring, Pack of 5 91-ON 1
NI 36770 Shim Rear End Play .005" .005" 91-ON AR
NI 37195 Checkball 0.250’’ Diameter Imidized Plastic Bag of 10 93-ON 1
NI 38670 1-2 Shift Valve Spring 91-ON 1
NI 38750 4th Clutch Housing to Case Bolt 91-ON 1
NI 38752 Centre Support to Case Bolt 91-ON 1
NI 38755 Cooler Fitting 91-95 2
NI 38756 Cooler Fitting Cooler Line to Case (Rear) Quck Connect 96-ON 2
NI 38758 Cooler Fitting Cooler Line to Case (Rear) Internal Threads 96-ON 2
NI 38765 Solenoid Bracket 91-ON AR
NI 38782 Boost Valve Bushing 91-ON 1
NI 49100 Universal Dust Cover 91-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 38800K Shift Kit 91-ON 1
Kit 38802K Shift Correction Package Superior 91-ON 1
Kit 38810K Reprogramme Kit 91-ON 1
Kit 38814K Reprogramme Kit Manual Shaft 91-ON 1
Kit 38820K Sure Cure Kit 91-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 36908K Extreme Duty Forward Clutch Hub Kit 91-ON 1
Kit 38964KU Gear Train Straight Gears (Used) 91-98 1
Kit 38980K Gear Train 91-ON 1
Kit 38995K Manual Shift Shaft Kit 95-ON 1
90A 38901 Pump Body & Gears 97-ON 1
91B 38910 Heavy Duty Input Shaft 91-ON 1
91B 38912 Billet 300M Input Shaft 91-ON 1
92B 38916 Overrun Drum 91-ON 1
92B 38916U Drum Overrun With Sungear 7.85 OD Rollers in sprag 91-01 1
92B 38917U Drum Overrun With Sungear 4.98 OD Rollers in Sprag 01-ON 1
93B 38920U Overdrive Planet (Used) 91-ON 1
94C 38926 Forward Drum With Lip Seal Piston 91-ON 1
95C 36908 Forward Clutch Hub H/Duty 91-ON 1
95C 38908U Forward Clutch Hub Used 91-ON 1
96A 38904 Pump Gears 91-ON 1
96D 38960U Direct Clutch Drum (Used) 91-ON 1
97F 36970 Silencer Ring Reaction to Output 91-ON 1
99H 38972 Transmission Pan, Alloy (Deep) 91-ON 1
905A 38905 Pump Stator 91-ON 1
968E 38968U Centre Support (Used) 99-ON 1
NI 36975S Case Save, Sonnax 91-98 1
NI 38976S Case Saver Retainer, Sonnax 99-ON 1
NI 38990 Valve Body Separator Plate 91-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49901 Green Assembly Goo Dr. Trannys 91-ON AR
NI 49902 Blue Assembly Goo Dr. Trannys 91-ON AR
NI 49910 Lubegard Red 91-ON 1
NI 49999-04 ATF DX III 4 Litres 95-ON AR
