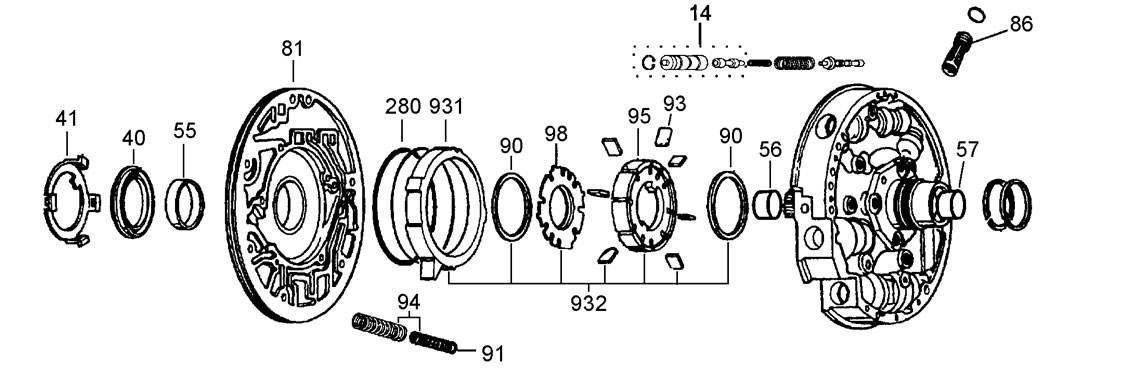

A

Pump

40
93
41
55
91
86
56
81
90
57
95
98
94
90
14
931
932

B

Reverse Input Clutch

30
21
70
20
31
58
50
59
71
72
170

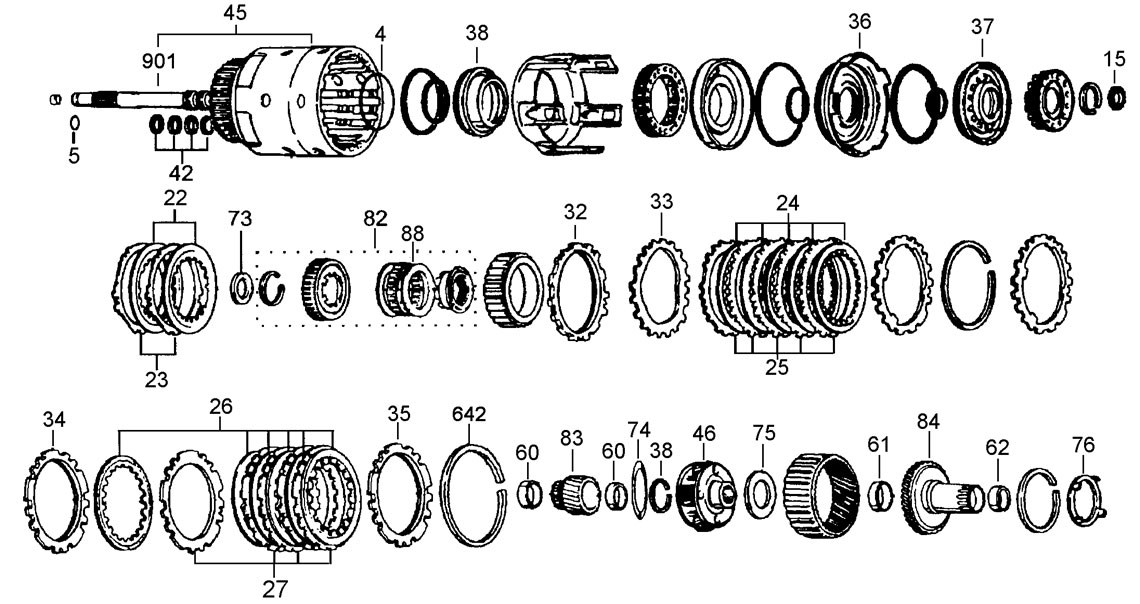

C

Overrun, Forward & 3-4 Clutch

27
45
42
26
23
25
37
74
24
82
33
73
60
62
76
83
46
61
60
22
84
38
75
35
36
38
88
34
32
15
4
5
642
901

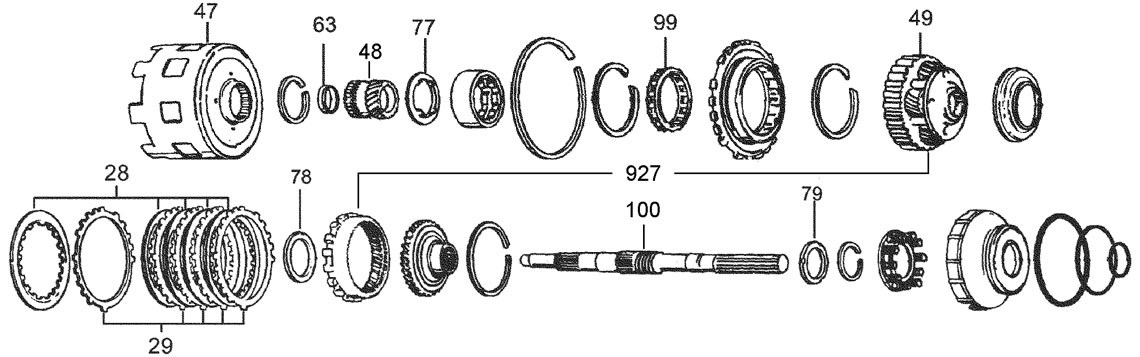

D

Planet Set And Low & Reverse Clutch

49
47
28
99
48
29
77
63
78
79
100
927

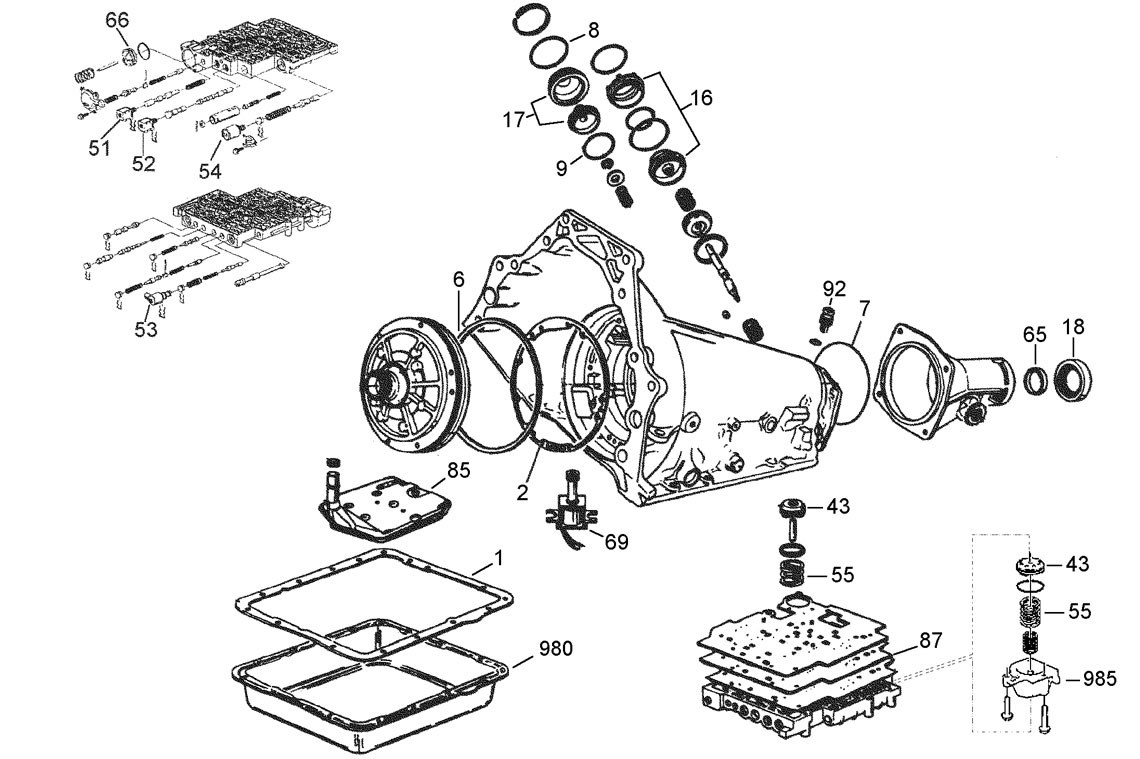

E

Pan, Filter, Case & Governor

55
43
65
2
69
66
85
92
87
51
54
1
16
18
17
52
53
8
9
6
7
980
43
55
985

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37004K Overhaul Kit 4L60E with Pump to Case Lathe Cut Seal Transtec 93-03 1
Kit 37004KP Overhaul Kit 4L60E 93-03 Alt
Kit 37005K Overhaul Kit (4L60E) No Clutch Seals Transtec 97-03 1
Kit 37005KP Overhaul Kit (4L60E) No Clutch Seals, Precision 97-03 Alt
Kit 37008K Overhaul Kit 4L60E, 4L65E, 4L70E with Pump to Case Wedge type Seal Transtec 04-09 1
Kit 37009K Overhaul Kit With Bonded Separator Plate 09-ON 1
Kit 37009KP Overhaul Kit With Bonded Separator Plate 07-13 Alt

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37004KM Master Kit 4L60E 93-97 1
Kit 37004KMA Master Kit 4L60E Hi Energy Frictions 93-97 Alt
Kit 37004KMHP Master Kit, Hi Performance 93-97 Alt
Kit 37004KMZP Master Kit 4L60E with Z Pak 93-97 Alt
Kit 37006KM Master Kit 4L60E 98-03 1
Kit 37006KMHP Master Kit Hi Performance 98-03 Alt
Kit 37006KMZP Master Kit 4L60E with Z Pak 98-03 Alt
Kit 37008KMHP Master Kit Hi Performance 04-ON Alt
Kit 37008KMRK Master Kit Race Kit 04-ON Alt
Kit 37008KMV6 Master Kit (4L65E) V6 Models 04-09 1
Kit 37008KMV8 Master Kit (4L65E) V8 Models 04-09 1
Kit 37008KMZP Master Kit 4L65E with Z Pak 04-09 Alt
Kit 37009KM Master Kit (4L65E) Inc Hummer 09-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37125K Valve Body Gasket Kit 93-00 1
Kit 37126K Valve Body Gasket Kit 93-05 1
Kit 37127K Valve Body Gasket Kit 00-05 1
Kit 37128K Valve Body Gasket Kit 06-ON 1
1E 37100 Pan Gasket Cork 93-ON 1
1E 37100F Pan Gasket Farpark 93-ON Alt
1E 37101 Pan Gasket Duraprene 93-ON Alt
2E 37104 Front Pump to Case Gasket 93-ON 1
NI 37120 Gasket Adapter to Transfer Case 93-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37155K Pump Seal Kit, Lathe Cut Seal 93-03 1
Kit 37156K Pump Seal Kit Wedge Type Seal 04-ON 1
Kit 37158K External Seal Kit with Pan Gasket 93-ON 1
Kit 37160K Servo Piston D Ring Kit 93-ON 1
Kit 37161K Sonnax 4th Apply Servo Piston Seal Kit 93-ON 1
Kit 37166K Superior 2nd Apply Servo Piston Seal Kit 93-ON 1
Kit 37167K Superior 4th Apply Servo Piston Seal Kit 93-ON 1
Kit 37178K Low & Reverse Seal Kit 93-ON 1
Kit 37199K Cooler O-Ring & Clip Kit 93-ON 1
4C 37175 Input Clutch to Forward Housing Green 93-ON 1
5C 37162 Input Shaft O Ring V6 (245mm T/C) 93-ON 1
5C 37163 Input Shaft O Ring V8 (300mm T/C) 93-ON 1
5C 37164 Input Shaft O Ring V8 (298mm T/C) 93-ON 1
6E 37150 Pump to Case Lathe Cut Seal 93-03 1
6E 37151 Pump to Case Wedge Seal 04-ON 1
7E 35168 Extension Housing to Case Lathe Cut Seal 93-ON 1
7E 37180 Extension Housing to Case Lathe Cut Seal (3 Piece Case) 96-ON 1
8E 37160 Servo Cover O Ring (Blue) 93-ON 1
9E 37165 2-4 Servo Guide O Ring (Red) 93-ON 1
170B 37170K Reverse Input Clutch Seal Kit 93-ON 1
NI 35172 Filler Tube Seal Top Hat 93-ON 1
NI 35174 Speedo Adaptor O Ring 93-ON 1
NI 37152 Pump Bolt Sealing O Ring 93-ON 7
NI 37153 Pump Filter O Ring 93-ON 1
NI 37162 Lock Up Solenoid O Ring 93-ON 1
NI 37171 Pump Slide Oring 93-ON 1
NI 37172 Rubber Pump Slide 93-ON 1
NI 37190 Forward Accumulator Lathe Cut Seal 93-ON 1
NI 37192 1-2/3-4 Accumulator Lathe Cut Seal 93-ON 1-2
NI 37193 Green Wiring Harness O-ring 93-ON 1
NI 37194 Check Ball Imidized Plastic (.218" Diameter) 93-ON AR
NI 37212 Seal Filter 93-ON 1
NI 43170 Steel Valve Body Check Balls 93-ON 9

seals

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37165K Sonnax 2nd Apply Servo Piston Seal Kit 93-ON 1
15C 37214 Input Housing to Output Shaft Seal 18.6 ID x 30 OD x 9.5mm 93-ON 1
18E 33206 Extension Housing (2 Lip Nitrile) 36.5 ID x 60.5 OD x 12.00mm 93-ON 1
18E 37230 Extension Housing (3 Lip Vamac) 36.5 ID x 60.5 OD x 10.20mm 93-ON Alt
18E 37230 Extension Housing VT Commodore 36.5 ID x 60.5 OD x 10.20mm 93-ON 1
18E 37236 Extension Housing Corvette 33 ID x 53 OD x 7.20mm 93-ON 1
40A 37200 Front Pump Seal 45 ID x 66.8 OD x 9.40mm 93-ON 1
NI 35210 Selector Shaft 12 ID x 19.2 OD x 5.00mm 93-ON 1
NI 37238 Adaptor Housing Seal Colorado 37.8 ID x 62.2 OD x 10.90mm 04-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37252K Sealing Ring Kit 93-ON 1
42C 37262 Turbine Shaft Sealing Ring 93-ON 4
42C 37262-4 Turbine Shaft Sealing Ring, Pack of 4 93-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37300K Friction Kit Borg Warner 93-03 1
Kit 37300KD Friction Module (Exedy) 93-ON Alt
Kit 37301K Friction Module without 3rd & 4th Clutch Friction Plates 93-ON 1
Kit 37301KHE Friction Module without 3rd & 4th Clutch Friction Plates, Hi Energy 93-ON Alt
Kit 37302K Friction Kit, Alto 93-03 1
Kit 37303K Friction & Steel Module 93-ON 1
Kit 37304K Friction Kit Raybestos 93-03 1
Kit 37305K Friction & Steel Module (HP) 93-ON 1
Kit 37306K Friction & Steel Module (HP) 93-ON 1
Kit 37308K Friction Kit Borg Warner 4L65E 04-ON 1
Kit 37309KD Friction Module (Exedy) 93-ON 1
Kit 37350K 3rd & 4th Clutch Upgrade Kit With Friction & Steel Plates 93-ON 1
Kit 37351K 3rd & 4th Clutch 7 Frictions and 6 Steels Upgrade Kit 93-ON 1
Kit 37352K 3rd & 4th Clutch Z Pak Single Sided Clutch System 93-ON 1
Kit 37352KA 3rd & 4th Clutch Upgrade Kit 93-ON 1
Kit 37354K Friction Kit with Z Pack, Raybestos 93-03 1
20B 37312 Reverse Input 153 OD x 1.78mm x 41T 93-ON 4
20B 37312D Reverse Input Friction Plate 153 OD x 1.75mm x 41T 93-ON Alt
20B 37312H Reverse Input Red 153 OD x 1.78mm x 41T 93-ON AR
22C 37314 Overrun 128 OD x 2.00mm x 36T 93-ON 2
22C 37314A Overrun Friction Plate 128 OD x 2.00mm x 36T 93-ON Alt
22C 37314H Overrun Red 128 OD x 2.00mm x 36T 93-ON AR
22C 37314HP Overrun Raybestos Blue 128 OD x 2.00mm x 36T 93-ON 2
24C 37318 Forward 135 OD x 1.78mm x 41T 93-ON 5
24C 37318A Forward Clutch Friction Plate 135 OD x 1.80mm x 40T 93-ON Alt
24C 37318H Forward Red 135 OD x 1.78mm x 41T 93-ON AR
24C 37318HP Forward Raybestos Blue 135 OD x 1.78mm x 41T 93-ON 5
24C 37320A Forward Clutch Friction Plate,Tan 146 OD x 2.05mm x 20T 93-ON Alt
26C 37322 3rd & 4th except 4L65E 146 OD x 2.05mm x 20T 93-ON 6
26C 37322D 3-4 Clutch Friction Plate 146 OD x 2.00mm x 20T 93-ON Alt
26C 37323 3rd & 4th 146 OD x 1.58mm x 20T 02-ON 7
26C 37323H 3rd & 4th Hi Performance Red 146 OD x 1.69mm x 20T 02-ON 7
26C 37324 3rd & 4th Hi Energy 146 OD x 1.58mm x 20T 93-ON 7-9
26C 37324A 3-4 Clutch Friction Plate, Hi Energy 146 OD x 1.60mm x 20T 93-ON Alt
26C 37324HP 3rd & 4th Raybestos Blue 146 OD x 1.58mm x 20T 93-ON AR
28D 37330 Low & Reverse 164 OD x 2.20mm x 25T 93-ON 6
28D 37330A Low & Reverse Clutch Friction Plate 164 OD x 2.20mm x 25T 93-ON Alt
28D 37330H Low & Reverse Red 164 OD x 2.20mm x 25T 93-ON AR

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37358K Steel Module Kolene Plates 93-ON 1
Kit 37391KU Top & Bottom Pressure Plate Kit 3.90 & 5.60mm APPLY 02-ON 1
21B 37363 Reverse Input Flat 129 ID x 2.00mm x 36T 93-96 2-3
21B 37363A Reverse Input Flat 129 ID x 2.30mm x 36T 93-96 AR
21B 37363T Reverse Input Turbulated 129 ID x 2.00mm x 36T 97-ON 4
23C 37364 Overrun 108 ID x 2.30mm x 10T 93-ON 2
23C 37364K Overrun Kolene 108 ID x 2.30mm x 10T 93-ON AR
25C 37366 Forward Flat 108 ID x 1.90mm x 20T 93-02 3-4
25C 37368 Forward Flat 4L65E 108 ID x 2.30mm x 20T 02-ON 3-4
25C 37368K Forward Flat 4L65E Kolene 108 ID x 2.30mm x 20T 02-ON AR
27C 37372 3rd & 4th 127 ID x 1.95mm x 20T 93-ON AR
27C 37372K 3rd & 4th Kolene 127 ID x 1.95mm x 20T 93-ON AR
27C 37374 3rd & 4th 127 ID x 2.70mm x 20T 93-02 5
27C 37374K 3rd & 4th Kolene 127 ID x 2.70mm x 20T 93-02 AR
27C 37375 3rd & 4th 127 ID x 2.40mm x 20T 02-ON 6
27C 37376 3rd & 4th Hi Performance 127 ID x 1.52mm x 20T 93-ON AR
27C 37376K 3rd & 4th Kolene 127 ID x 1.52mm x 20T 93-ON AR
29D 35370 Low & Reverse 145 ID x 1.75mm x 17T 93-ON 5
29D 37377 Low & Reverse Turbulated 145 ID x 1.20mm x 17T 97-ON AR
29D 37377A Low & Reverse Turbulated 145 ID x 1.72mm x 17T 97-ON AR
29D 37378 Low & Reverse 145 ID x 2.20mm x 17T 93-ON 1
29D 37388 Low & Reverse 145 ID x 2.46mm x 17T 93-ON AR
29D 37388W Low & Reverse Pressure Plate, Waved 93-ON Alt
31B 37362 Reverse Input Dished 129 ID x 2.30mm x 36T 93-ON 1
32C 37386 Forward Pressure Plate 6.43mm 102.3 ID x 6.43/8.80mm x 20T 93-ON 1
33C 37365 Forward Waved 108 ID x 1.80mm x 20T 93-ON 1
34C 37382 3rd & 4th Apply Plate 5 Leg 5.60mm 127 ID x 5.60mm x 15T 93-02 1
34C 37383 3rd & 4th Apply Plate 4.10mm 127 ID x 4.10mm x 15T 02-ON 1
35C 37390 3rd & 4th Backing/Pressure Plate Selective (3.30mm) 127 ID x 3.30mm x 15T 93-ON AR
35C 37390A 3rd & 4th Backing/Pressure Plate Selective (3.90mm) #4 127 ID x 4.1mm x 15T 93-ON AR
35C 37390B 3rd & 4th Backing/Pressure Plate Selective (5.00mm) #3 127 ID x 5.00mm x 15T 93-ON AR
35C 37390D 3rd & 4th Backing/Pressure Plate Selective (5.70mm) #6 127 ID x 5.70mm x 15T 93-ON AR

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37402K Bush Kit 93-ON 1
55A 37410 Front Pump Bush Babbit 93-ON 1
55A 37410A Front Pump Bush Teflon Coated 93-ON 1
56A 37412 Stator Support Front 28.6 OD x 17.00mm Wide 93-ON 1
56A 37412A Stator Support Front 26.35 OD x 12.50mm Wide 93-ON 1
57A 37414 Stator Support Rear 11.88mm Wide 93-ON 1
57A 37414A Stator Support Rear 12.95mm wide Teflon Coated 93-ON 1
58B 37416 Reverse Input Housing Front 93-ON 1
59B 37418 Reverse Input Housing Rear 93-ON 1
60C 37420 Input Sun Gear Front & Rear 26.6 OD x 23.6 ID x 9.60mm 93-ON 2
61C 37422 Reaction Carrier Shaft Front 93-ON 1
62C 37424 Reaction Carrier Shaft Rear 93-ON 1
63D 37426 Reaction Sun Gear 9.40mm wide 93-ON 1
63D 37428 Reaction Sun Gear 15.24mm wide 93-ON 1
65E 33425 Extension Housing Babbit 38 ID x 41.5 OD x 24.00mm 93-ON Alt
65E 35440 Extension Housing Bronze 38 ID x 41.5 OD x 24.00mm 93-ON Alt
65E 37442 Extension Housing Teflon Coated 41.3 OD x 38.4 ID x 24.00mm 93-ON 1
NI 35420 Case Babbit 93-ON Alt
NI 37430 Case Bronze 93-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37450K Thrust Washer Kit 93-ON 1
Kit 37452K Thrust Bearing Kit 93-ON 1
Kit 37464K Endplay Shim Kit (10pcs. pack) 93-ON 1
70B 37460 Pump to Reverse Drum Washer 93-ON 1
71B 37462 Stator Support to Input Drum Brg 93-ON 1
72B 37464A Stator Support To Input Drum Selective 1.87mm-1.97mm Thick 93-ON AR
72B 37464B Stator Support To Input Drum Selective 2.04/2.14mm Thick 93-ON AR
72B 37464C Stator Support To Input Drum Selective 2.21/2.31mm Thick 93-ON AR
72B 37464D Stator Support To Input Drum Selective 2.38/2.48mm Thick 93-ON AR
72B 37464E Stator Support To Input Drum Selective 2.55/2.65mm Thick 93-ON AR
72B 37464F Stator Support To Input Drum Selective 2.72/2.82mm Thick 93-ON AR
72B 37464G Stator Support To Input Drum Selective 2.89/2.99mm Thick 93-ON AR
72B 37464H Stator Support To Input Drum Selective 3.06mm-3.16mm Thick 93-ON AR
73C 37466 Input Sungear Bearing 93-ON 1
74C 37467 Input Carrier to Sprag Race Washer 93-ON 1
75C 37468 Input Carrier to Reaction Shaft Bearing (without Lip) 42.7 ID x 62.5 OD x 3.70mm 93-06 1
75C 37468A Input Carrier to Reaction Shaft Bearing (without Lip) 42.7 ID x 64.2 OD x 3.70mm 01-06 1
75C 37468B Input Carrier to Reaction Shaft Bearing (with Lip) 42.2 ID x 63.5 OD x 4.36mm 07-ON 1
76C 37470 Reaction Shaft to Shell Washer 93-01 1
76C 37470A Reaction Shaft to Shell Washer Heavy Duty (use with 37917) 01-ON 1
76C 37473 Reaction Shaft to Shell Bearing 02-ON 1
77D 37472 Rear OWC RaceTo Shell Washer 93-ON 1
78D 37474 Reaction Carrier to Support Brg 93-ON 1
79D 37468 Reaction Gear Support To Case Brg 42.7 ID x 62.5 OD x 3.70mm 93-ON 1

bands

NO PART # DESCRIPTION SIZE YEARS QTY
30B 37502 Second & Fourth Band 60mm Wide 93-ON 1
30B 37505 Second & Fourth Powerband Kevlar 66mm Wide 93-ON Alt

filters

NO PART # DESCRIPTION SIZE YEARS QTY
85E 37553 Filter Corvette 97-ON 1
85E 37554 Filter 93-ON 1
85E 37556 Filter Deep Pan 97-ON 1
85E 37558 Filter Colorado 4WD & Hummer H3 with step in Filter 04-ON 1
86A 37561 Pump Cover Filter 93-ON 1
NI 37560 Governor & Converter Filter 93-ON 2
NI 37564 Small Valve Body Filter, Pressure Control Solenoid 93-ON 1
NI 37565 Large Valve Body Filter, Shift Solenoid 93-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37553K Filter Kit Corvette (4L60E) 93-ON 1
Kit 37554K Filter Kit 93-ON 1
Kit 37556K Filter Kit Deep Pan 97-ON 1
Kit 37558K Filter Kit Colorado 4WD & Hummer H3 with step in Filter 04-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37570K Accumulator Piston Kit 93-ON 1
Kit 37580KS 2nd Gear "Corvette" Ratio Servo Kit, Sonnax 93-ON 1
Kit 37585K Moulded Piston Kit - 4L60E, 4L65E 93-ON 1
Kit 37585KA Moulded Piston Kit, Hi-per Blue 93-ON Alt
Kit 37590KS Sub Kit For Input Drum Reinforcement Kit 93-ON 1
16E 37580K 2nd Apply "Corvette" Servo Piston Kit 93-ON 1
16E 37581K 2nd Super Servo Sonnax 93-ON 1
16E 37581KS 2nd Super Servo Superior 93-ON 1
17E 37582K 4th Apply Super Servo Piston Kit Sonnax 82-93 1
17E 37582KS 4th Apply Super Servo Piston Kit Superior 82-93 1
36C 37586 Forward Clutch Piston Billet Type 93-ON 1
36C 37587 Forward Clutch Piston 93-ON 1
36C 37587A Forward Clutch Piston, Hi-per Blue 93-ON Alt
37C 37588 Overrun Clutch Moulded Piston & Release Spring Assembly 93-96 1
37C 37589 Overrun Clutch Moulded Piston 97-ON 1
37C 37589A Overrun Clutch Moulded Piston, Hi-per Blue 97-ON 1
38C 37585 3-4 Clutch Moulded Piston 93-ON 1
38C 37585A 3-4 Clutch Piston with Bonded Seal, Hi-per Blue 93-ON Alt
43E 37572 Accumulator Piston 1-2, 3-4 Large Hole 93-ON 1
43E 37572A Accumulator Piston 1-2, 3-4, Hi-per Blue 93-ON Alt
43E 37574 Accumulator Piston 1-2, 3-4 Small Hole 93-ON 1
43E 37574A Accumulator Piston 1-2, 3-4 (Small Hole), Hi-per Blue 93-ON Alt
43E 37575 Accumulator Piston 1-2, 3-4 Pinless 93-ON 1
66E 37576 Forward Accumulator Piston 93-ON 1
66E 37577 Forward Accumulator Piston Pinless type 93-ON Alt
66E 37578 Forward Accumulator Piston Small 93-ON Alt

modulators

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37600K Vaccum Pressure Control Kit 93-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37754U 3-4 Clutch Retainer & Springs 93-ON 1
642C 37642 3-4 Clutch Circlip 1.58mm 93-ON 1
NI 37640 Front Planet to Output Shaft Circlip 93-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37650K Clutch Spring Kit Heavy Duty 93-ON 1
Kit 37665K 3-2 Spring & Stop Valve 3-Pack 93-ON 1
55E 37670 1-2 & 3-4 Accumulator Springs Red 93-ON 1
55E 37672 1-2 & 3-4 Accumulator Springs Purple 93-ON 1
55E 37674 1-2 & 3-4 Accumulator Springs White 93-ON 1
55E 37676 1-2 & 3-4 Accumulator Spring Orange (Replaces Tapered Design) 93-ON 1
55E 37680 1-2 & 3-4 Accumulator Springs Yellow 93-ON 1
82C 37655 Forward Sprag Assembly Heavy Duty Complete 93-ON 1
82C 37655U Forward Sprag Assembly, Used 93-ON Alt
88C 37684 Forward Sprag (28 Element) 93-ON 1
91A 37660 Pump Slide Inner Spring 93-ON 1
94A 37658 Pump Slide Spring Only Sonnax Purple 93-ON Alt
99D 37686 Low Roller Clutch 16 Elements 93-ON 1
NI 37662 Anti Stick Spring 93-ON 1
NI 37665 3-2 Control Valve Spring 93-ON 1
NI 37669 Enhanced Performance Accumulator Spring 93-ON 1
NI 37682 Spring Throtle Valve Spring 93-ON 1
NI 37685 Forward Sprag Plastic Cage 93-ON 1
NI 37688 Spring Servo Apply Superior 93-ON 1
NI 37753 Retainer With Springs 93-ON 1
NI 37754 3-4 Clutch Retainer & Springs 93-ON 1
NI 37755 3-4 Release Spring (Bag of 10) 93-ON 1-5

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37722K Wiring Harness & Lock Up Solenoid 92-02 1
Kit 37723K Wiring Harness & Lock Up Solenoid Square EPC Connector 03-06 1
Kit 37724K Wiring Harness & Lock Up Solenoid Input Sensor Design 03-06 1
Kit 37725K Wiring Harness & Lock Up Solenoid Internal Mode Switch Design 03-06 1
51E 37712 1-2 Shift Solenoid (Solenoid A) 93-ON 1
52E 37712 2-3 Shift Solenoid (Solenoid B) 93-ON 1
53E 37714 3-2 Shift Solenoid (PWM) Grey Terminal 93-95 1
53E 37716 3-2 Shift Solenoid (On-Off) WhiteTerminal 96-ON 1
54E 37702 Pressure Control Solenoid (EPC) 93-02 1
54E 37704 Pressure Control Solenoid (EPC) 03-ON 1
69E 37710K Universal TCC Solenoid Kit 93-ON 1
92E 35704 4 Pin Case Connector 93-ON 1
92E 37740 3 Pin Case Connector 93-ON 1
NI 37714 TCC Solenoid (PWM) 95-ON 1
NI 37717 Input Speed Sensor (in Pump) 06-ON 1
NI 37718 Output Speed Sensor (VSS) 93-95 1
NI 37720 Output Speed Sensor (VSS) 96-ON 1
NI 37721 Output Speed Sensor (VSS) 4L65E 05-ON 1
NI 37726 Pressure Switch Manifold (PSM) 93-ON 1
NI 37730 Inhibitor Switch One 7 Pin & one 4 Pin Connector 96-03 1
NI 37732 Inhibitor Switch One 11 Pin Pin Connector 04-ON 1
NI 37734 Inhibitor Switch Internal Mode Switch (IMS) 4L70E 09-ON 1
NI 37745 EPC Solenoid Harness Adapter Allows use of early Solenoid in Late 2003-ON Unit 03-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37756K Bellhousing to Case Bolt Kit 8 Bolts 6 Point 93-ON 1
Kit 37771K Actuator Feed Limit Valve Kit* *Requires Reamer 93-ON 1
Kit 37772K Oversized Actuator Feed Limit Valve 93-ON 1
Kit 37773 Valve Body Bore End Plugs 93-ON 1
Kit 37774K Converter Conversion Valve Kit 93-15 1
Kit 37775K Oversized 4-3 Sequence Valve Kit 93-ON 1
Kit 37776K Accumulator Pin & Reamer Kit Starter Kit includes Reamer & 10 Pins 93-ON 1
Kit 37777K 3-4 Relay O Ringed End Plug Kit 93-ON 1
Kit 37779 3rd Accumulator Sleeve Kit 93-ON 1
Kit 37780K TCC Apply Valve with Teflon Seal For Non PWM Pumps 93-97 1
Kit 37781K TCC Apply Valve with Teflon Seal For PWM Pumps 98-ON 1
Kit 37785K TCC Regulator Valve Kit* 93-97 1
Kit 37786K TCC Regulator Valve Kit* 98-ON 1
Kit 37787K Isolator Sleeve Kit* *Requires Reamer 93-ON 1
Kit 37789K Forward & Reverse Abuse Valve Kit Fits either location 93-ON 1
Kit 37789KX Oversized Forward & Reverse Abuse Valve Kit 93-ON 1
Kit 37796K Reverse Abuse Bore (Divider) Plug Kit, 4L60E and 4L65E 93-ON 1
Kit 37799KX Oversized 3-4 Shift Valve Kit 93-ON 1
Kit 37909ST Input Housing Kit, Sonnax Smart-Tech 93-ON 1
Kit 38788K Vacuum Boost By-Pass Kit 93-ON 1
Kit 49305K Valve Body Plate Repair Kit Fixes 5 Valve Body Holes Most Plates with 1/4” Holes 93-ON 1
14A 37790K Reverse Boost Valve Kit .490” with O Ring Early style Pump 93-05 1
14A 37791K Reverse Boost Valve Kit .470” with O Ring Early style Pump 93-05 1
14A 37793AK Reverse Boost Valve Kit .490” Early Sonnax O Rings 93-ON 1
14A 37793ASK Reverse Boost Valve Kit Early .473” Superior No O Rings 93-ON 1
14A 37793K-490 Reverse Boost Valve Kit.490” Late Sonnax O Rings 93-ON 1
14A 37793K-500 Reverse Valve Kit .500” Transgo Does Early & Late No O Rings 93-ON 1
14A 37793SK Reverse Boost Valve Kit Late .473” Superior No O Rings 93-ON 1
41A 37750 Front Pump Seal Retainer 93-ON 1
NI 35764 Centre Support Lock 93-ON 1
NI 35765 Case Saver 4 Piece Kit 93-ON AR
NI 37195 Checkball 0.250’’ Diameter Imidized Plastic Bag of 10 93-ON 1
NI 37744 Wiring Harness Connector Bracket 03-ON 1
NI 37752 Pump Slide Pivot Pin - 5 Pack 93-ON 1
NI 37752-1 Pump Slide Pivot Pin 93-ON 1
NI 37759 Servo Release Check Valve, Sonnax 93-ON 1
NI 37759A Servo Release Check Valve, Superior 93-ON Alt
NI 37760 3rd Accumulator Retainer & Ball OEM Design 93-ON 1
NI 37763 Input Shaft Check Ball 93-ON 1
NI 37764 Low & Reverse Check Ball Located In Case 93-ON 1
NI 37765 Rapid Relief Valve 3-4 Clutch 93-ON 1
NI 37766 Reverse Input Piston Capsule 93-ON 1
NI 37767 TCC Relief Cup Plug 6mm 97-ON 1
NI 37768 Anti Clunk Spring 93-ON 1
NI 37770 Servo Pin Extender Grind to Length 93-ON 1
NI 37770A Servo Pin Kit Extra Long with Seals 93-ON 1
NI 37778 Forward Accumulator Pins Requires Reamer avalable Special Order on Request 93-ON 1
NI 37789 Forward & Reverse Abuse Bore Plug 93-ON 1
NI 37794 Oversize Pressure Regulator Valve Requires Reamer available Special Order on Request 93-ON 1
NI 37794A Drop-in Pressure Regulator Valve 93-ON 1
NI 37795 Universal Dipstick & Tube 93-ON 1
NI 37799 Heavy Duty 2-3 Shift Valve 93-ON 1
NI 49100 Flywheel Cover Universal 93-ON 1
NI 49204C Shift Cable Repair Clip for Vehicles with Floor Shifters 93-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 35775K Shift Point Package 93-ON 1
Kit 37804K Shift Kit 93-97 1
Kit 37805K Power Tow Kit, Superior 93-ON 1
Kit 37806K Valve Body Kit Superior 93-97 1
Kit 37807K Valve Body Kit Superior 98-ON 1
Kit 37808K Sure Cure Kit Sonnax 93-ON 1
Kit 37809KHD Valve Body Kit, RatioTek 93-ON 1
Kit 37812K Performance Pack, Sonnax 94-14 1
Kit 37813K Reprogramming Kit with Gear Command 96-18 1
Kit 37814K Reprogramme Kit 93-ON 1
Kit 37815K 2-4 Band Servo Apply Spring Kit 93-ON 1
Kit 37816K Reprogramme Kit Manual Shift only 93-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37909K Input Housing Kit V8 with Heavy Duty Shaft contains Input Housing with 300mm Input Shaft, Reinforcement Sleeve installed, Overrun Piston & Seals Reluctor Style 04-ON 1
Kit 37915K Input Planet Kit 2.84 Ratio 93-ON 1
Kit 37923K Sungear & Shell Upgrade Kit With Hub, Shaft & Thrust Bearing 93-ON 1
37C 37590K Input Drum Reinforcement Kit Contains Reinforcement Sleeve and Overrun Piston and Seals 93-ON 1
45C 37912 Input Shaft & Drum V6 27 Spline 200 mm Long Shaft Input Speed Sensor Relector on Shaft 06-0N 1
45C 37913 Input Shaft & Drum V8 30 Spline 300mm Long Shaft No Input Speed Sensor Reluctor on Shaft 98-05 1
45C 37913HP Input Shaft & Drum V8 No ISS H/P 98-05 1
45C 37913U Input Shaft & Drum V8 No ISS (Used) 98-05 1
45C 37913WHP Input Shaft & Drum With ISS V8 H/P 98-05 1
45C 37913WU Input Shaft & Drum V8 With ISS 93-ON 1
46C 37915 Input Planet Carrier 5 Pinion When replacing 4 Pinion Planet may also need 37468A & 37921A 93-ON 1
47D 37916 Drive Shell OEM Washer Type with 4 Washer Holes 93-02 1
47D 37916U Drive Shell (Used) 93-ON 1
47D 37917 Drive Shell, Heavy Duty 93-02 Alt
47D 37917A Drive Shell (The Monster) 93-ON 1
47D 37917K Drive Shell (Sonnax Smart Shell) 93-ON Alt
47D 37919 Drive Shell Bearing Type No Washer Holes 02-ON 1
47D 37919A Drive Shell The Monster Bearing Type 01-ON 1
48D 37918 Rear Sungear 93-ON 1
49D 37926 Rear Planet 4 Pinion 93-ON 1
49D 37927 Rear Planet 5 Pinion (Retrofits) 93-ON 1
50B 37910 Reverse Drum 93-ON 1
50B 37910U Reverse Drum, Used 93-ON Alt
83C 37914 Input Sungear No Bevel Can also use 37914A 93-ON 1
83C 37914A Input Sungear Tab Type with Bevel Can also use 37914 93-ON 1
83C 37914U Sungear Input (Used) 93-ON 1
84C 37921U Reaction Shaft Bearing Type 63.6mm 93-ON 1
84C 37922U Reaction Shaft Bearing Type 66.8mm 93-ON 1
87E 37990 Valve Body Separator Plate 93-94 1
87E 37992 Valve Body Separator Plate 1995 1
87E 37994 Valve Body Separator Plate Excluding 2005 Corvette 96-06 1
87E 37994IPC Valve Body Separator Plate OEM IPC 96-06 1
87E 37995 Valve Body Separator Plate 07-08 1
87E 37996 Valve Body Separator Plate 2009 1
90A 37936 Pump Vane Ring Heavy Duty 93-ON 2
93A 37930 Pump Vanes 93-ON AR
94A 37938K Pump Slide Spring Kit Heavy Duty Engines under 5500rpm Transgo No Yoyo 93-ON 1
94A 37939K Pump Slide Spring Kit Heavy Duty Engines Over 5500rpm Transgo No Yoyo 93-ON 1
94A 37941K Pump Slide Spring and Regulator Spring & Ring Kit HD Superior 93-ON 1
95A 37934 Pump Rotor (10 Vane) 93-96 1
95A 37935 Pump Rotor (13 Vane) 0.7075" 97-ON 1
98A 37944 Pump Rotor Positioner (10 Vane) 93-96 1
98A 37946 Pump Rotor Positioner (13 Vane) 97-ON 1
100D 37928AU Output Shaft 18-1/8" Long 3 1/2" Splines 93-ON 1
100D 37928BU Output Shaft 18-1/4" & 4 1/2" SPLINES 93-ON 1
100D 37928CU Output Shaft 3-1/4" Long 4WD (4L60E) 93-ON 1
901C 37901A Input Shaft Heavy Duty With TIP 298mm 93-ON 1
901C 37901B Input Shaft Heavy Duty No ISS 300mm 93-ON 1
901C 37901C Input Shaft Heavy Duty With ISS 93-ON 1
927D 37927K Rear Planet Set (5 Pinion) 93-ON 1
931A 37931 Pump Slide 93-ON 1
932A 37932K Pump Rotor & Slide Kit (10 Vane) 93-96 1
932A 37933K Pump Rotor & Slide Kit (13 Vane) 97-ON 1
980E 37980 Transmission Pan, Alloy 93-ON 1
980E 37980D Transmission Pan, Alloy (Deep) 93-ON Alt
985E 37985 1-2 Accumulator Housing 93-ON 1
NI 37906 Pump Half Complete - PWM - Oring Style 95-ON 1
NI 37908 Stator Shaft 245mm & 298mm Input Shaft Non Reluctor Style 27 Splines 93-03 1
NI 37908A Stator Shaft 300mm Input Shaft Non Reluctor Style 28 Splines 99-03 1
NI 37908B Stator Shaft 298mm Input Shaft Reluctor Style 04-ON 1
NI 37908C Stator Shaft 300mm Input Shaft Reluctor Style 04-ON 1
NI 37962 Rear Mount VR-VS V6 Commodore 93-ON 1
NI 37964 Rear Mount VR-VS V8 Commodore 93-ON 1
NI 49132 Drive Plate VR, VS V8 Commodore 93-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 Lubegard Complete Full Synthetic 946ml Bottle 93-ON AR
NI 49991-06 Lubegard Complete Full Synthetic 5.7 Litre Pack 93-ON AR
NI 49991-20 Lubegard Complete Full Synthetic 20 Litre Pack 93-ON AR
NI 49991-22 Lubegard Complete Full Synthetic 22 Litre Pack 93-ON AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
NI T1503 Stator Shaft Seal Installer 4L60/E 93-ON 1
NI T370 Bellhousing Hex Bit 93-ON 1
NI T374 Mortorque Spiral Driver Tool Bit 93-ON 1
NI T-4L60E-AFL-TK Reamer for 37772K 93-ON 1
NI T-77917-TL Reamer & Guide for 37794 93-ON 1
