A
2-6 Clutch
21
20
60
B
Low & Reverse Clutch
23
61
22
80
C
1-2-3-4 Clutch
25
24
D
3-5-Reverse Clutch
27
26
91
85
35
63
930
635
E
4-5-6 Clutch
29
66
28
36
F
Planetary Sets
93
G

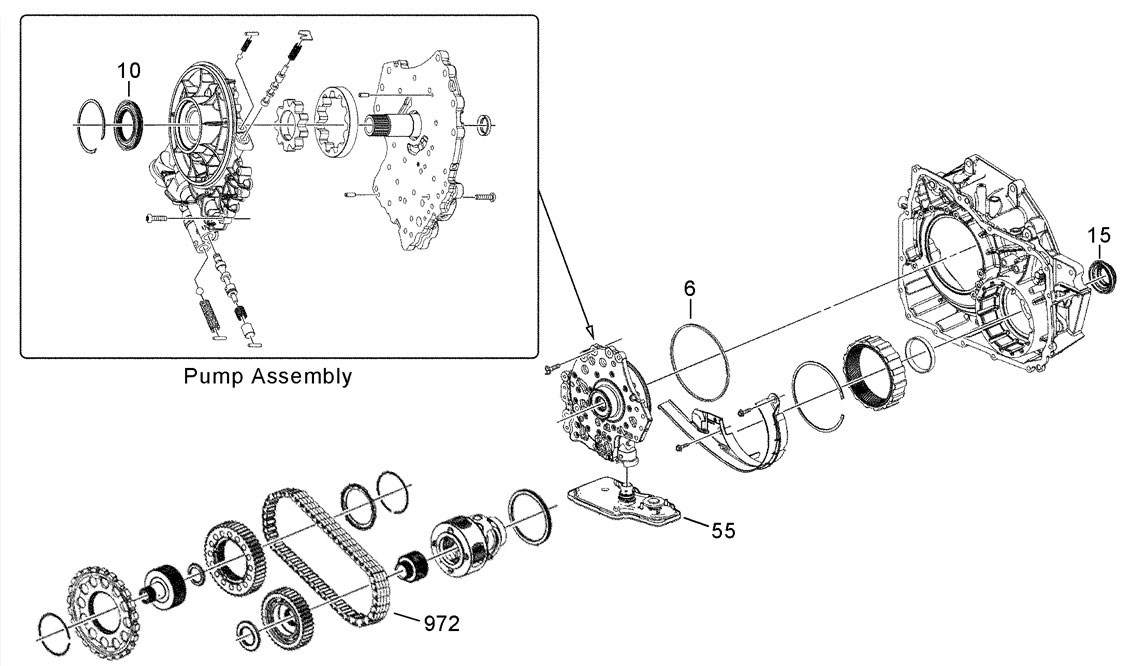

Pump, Filter, Differential & Output
55
6
15
10
H

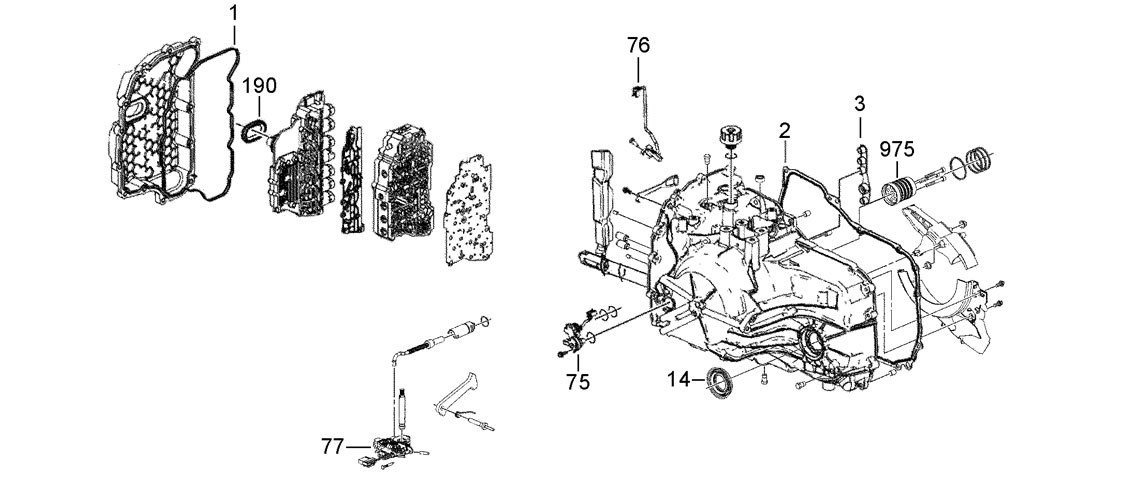

Valve Body, Sensors & Main Case
2
75
77
14
1
190
3
76
975
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 134000K | Overhaul Kit With Bonded Pistons Gen I | Transtec | 09-12 | 1 |
| Kit | 134000KA | Overhaul Kit With Pistons Gen I | Precision | 09-12 | Alt |
| Kit | 134002K | Overhaul Kit Without Bonded Pistons Gen I | Transtec | 09-12 | 1 |
| Kit | 134002KA | Overhaul Kit Gen I | Precision | 09-12 | Alt |
| Kit | 134004K | Overhaul Kit With Bonded Pistons Gen2 | Transtec | 13-18 | 1 |
| Kit | 134006K | Overhaul Kit Without Bonded Pistons Gen2 | Transtec | 13-18 | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 1H | 135100 | Valve Body Cover Gasket | 09-ON | 1 | |
| 2H | 134110 | Main Case Gasket | 09-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 134165K | Seal Kit 3-5-Reverse Clutch Gen I | 09-ON | 1 | |
| Kit | 134168K | Seal Kit 4-5-6 Clutch Gen I | 09-ON | 1 | |
| Kit | 135178K | Valve Body to Case Seal Kit | 11-ON | 1 | |
| 3H | 135180K | Case to Bellhousing Seal Kit | 09-ON | 1 | |
| 6G | 135160 | Pump O Ring | 09-ON | 1 | |
| 190H | 135190 | Seal Valve Body to Case Connector | 09-ON | 1 | |
| NI | 135176 | Tube Seal | 09-ON | 2 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 10G | 135200 | Converter Seal | 40.5 ID x 64.5 OD x 7.50mm | 09-ON | 1 |
| 14H | 135210 | Axle Seal Lefthand | 35 ID x 61 OD x 10.30mm | 09-ON | 1 |
| 15G | 135212 | Axle Seal Righthand | 35 ID x 66.3 OD x 24.50mm | 09-ON | 1 |
| NI | 33210 | Manual Shaft Seal | 12 ID x 19 OD x 8.80mm | 09-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 134300K | Friction Kit Gen I | 09-11 | 1 | |
| Kit | 134302K | Friction Kit Gen II | 12-14 | 1 | |
| Kit | 134304K | Friction Kit Gen III | 15-ON | 1 | |
| 20A | 134312 | 2-6 Clutch | 195 OD x 1.60mm x 30T | 09-ON | 2 |
| 20A | 134313 | 2-6 Clutch | 196 OD x 1.60mm x 30T | 12-ON | 2 |
| 22B | 134318 | Low & Reverse Clutch Gen I | 194 OD x 1.60mm x 48T | 09-11 | 3 |
| 22B | 134319 | Low & Reverse Clutch Gen II | 214 OD x 160mm x 48T | 12-14 | 3 |
| 22B | 134320 | Low & Reverse Clutch Gen III | 194 OD x 1.50mm x 48T | 15-ON | 3 |
| 24C | 134310 | 1-2-3-4 Clutch | 195 OD x 1.47mm x 36T | 09-ON | 2 |
| 24C | 134311 | 1-2-3-4 Clutch | 195 OD x 1.50mm x 36T | 12-ON | 2 |
| 26D | 134314 | 3-5-Reverse Clutch External Teeth | 134 ID x 1.60mm x 36T | 09-ON | 3 |
| 26D | 134315 | 3-5-Reverse Clutch External Teeth | 134 ID x 1.50mm x 30T | 12-ON | 3 |
| 28E | 134316 | 4-5-6 Clutch | 110 OD x 1.60mm x 24T | 09-ON | 5 |
| 28E | 134317 | 4-5-6 Clutch | 110 OD x 1.60mm x 24T | 12-ON | 5 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 135368K | 3-5-Reverse Clutch Drum Saver Kit | 09-ON | 1 | |
| 21A | 134362 | 2-6 Clutch | 173 ID x 2.50mm x 15/24T | 09-ON | 2 |
| 23B | 134370 | Low & Reverse Clutch | 174 ID x 1.70mm x 12T | 09-ON | 3 |
| 25C | 134360 | 1-2-3-4 Clutch | 173 ID x 1.75mm x 11/24T | 09-ON | 2 |
| 27D | 134364 | 3-5-Reverse Clutch Internal Teeth | 156 OD x 2.39mm x 36T | 09-ON | 3 |
| 29E | 134366 | 4-5-6 Clutch | 92 ID x 1.63mm x 36T | 09-ON | 3 |
| 35D | 134395 | 3-5-Reverse Clutch | 09-ON | 1 | |
| 36E | 134368 | 4-5-6 Clutch Apply Plate | 92 ID x 2.44mm x 36T | 09-ON | 1 |
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 134570K | Piston Kit | 09-ON | 1 | |
| 60A | 134572 | 2-6 Clutch Piston | 09-ON | 1 | |
| 61B | 134574 | Low & Reverse Piston | 09-ON | 1 | |
| 63D | 134578 | PISTON 3-4-REVERSE CLUTCH (6T30) | 09-ON | 1 | |
| 66E | 134582 | 4-5-6 Balance Piston | 09-ON | 1 |
springs & one way clutches
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 85D | 134675 | 3-5-R Cushion Plate | 09-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 135700KFN | Solenoid Set Gen I (From New) with Black Bases | 08-11 | 1 | |
| Kit | 135702KFN | Solenoid Set Gen II (From New) with Multicolour Bases | 12-ON | 1 | |
| Kit | 135702KU | Solenoid Set Gen II (Used) with Multicolour Bases | 12-ON | 1 | |
| 75H | 135730 | Input Speed Sensor (ISS) | 09-ON | 1 | |
| 76H | 135732 | Output Speed Sensor (OSS) | 09-ON | 1 | |
| 77H | 135740 | Internal Mode Switch (IMS) | 09-ON | 1 |
Vehicle Details Required
Must be programmed after Fitting
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 135790K | Actuator Feed Limit drop-in Valve & Sleeve Kit | 09-ON | 1 |
shift & reprogramme kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 135800K | Shift Kit Gen I | 07-12 | 1 | |
| Kit | 135809K | Shift Kit, Gen II | 12-ON | 1 | |
| Kit | 135822K | Zip Kit 6T30 Gen II | 09-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | 134910K | Oil Baffle Kit | 09-ON | 1 | |
| Kit | 134950KU | Planet Set Used | 09-ON | 1 | |
| 80B | 134650U | Low/Reverse Sprag Used | 09-ON | 1 | |
| 90D | 134928KU | 3-5-R Drum, Gen I Loaded | 09-ON | 1 | |
| 91D | 134932 | 4-5-6 Drum Gen I | 09-ON | 1 | |
| 91D | 134934 | 4-5-6 Drum Gen II | 09-ON | 1 | |
| 93F | 134952U | Reaction Sungear & Shell | 09-ON | 1 | |
| 930D | 134930KU | 3-5-R Drum With Shaft, Gen II | 09-ON | 1 | |
| 975H | 134975 | 4-5-6/3-5-Reverse Clutch Hub | Length 58.94mm | 09-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49991-01 | LUBEGARD COMPLETE FULL SYNTHETIC (946ml) | AR | ||
| NI | 49991-20 | LUBEGARD COMPLETE FULL SYNTHETIC (20L) | AR | ||
| NI | 49991-22 | LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) | AR |
