A

Pump & Input Hub

40
42
2
90
10
41

B

Overdrive/Reverse Piston & Underdrive Clutch

20
61
60
21
910

C

Overdrive & Reverse Clutches

23
25
65
24
22
92
422
422

D

2-4 Hub & Planets

46
45
97
95
93
96
94
920

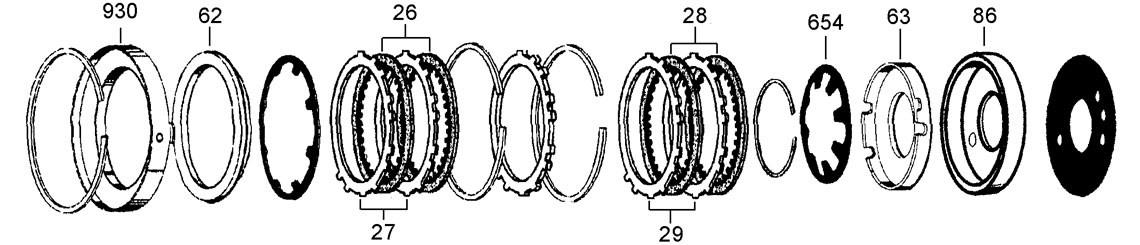

E

2-4 & Low & Reverse Clutches

29
63
26
28
27
62
86
930
654

F

Pinion Gear, Output Shaft & Underdrive Ring Gear

980

G

Underdrive Planet & Underdrive Direct Clutch

65
64
30
31
675

H

Underdrive Direct Drum & Underdrive Low Clutch

32
66
99
98
33

J

Transfer Shaft & Transfer Output Gear

89
490

K

Differential, Pan, Filter & Valve Body

73
71
72
988
75
55
1
70
74
984
990

overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130000K Overhaul Kit 62TE With Bonded Pistons Transtec 07-ON 1
Kit 130002K Overhaul Kit 62TE Without Bonded Pistons Transtec 07-ON 1
Kit 130002KA Overhaul Kit Without Pistons Precision 07-ON Alt

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130000KM Master Kit with Pistons 07-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130125K Valve Body Gasket Kit 07-ON 1
Kit 130150K Pump Leak Kit 07-ON 1
1K 130100 Pan Gasket Cork 07-ON 1
1K 130100H Pan Gasket Duraprene 07-ON 1
2A 130110 Pump Gasket 07-ON 1
NI 130120 Valve Body Cover Gasket 07-ON 1
NI 130130 End Cover Gasket 07-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 37199K Cooler O-Ring & Clip Kit 07-ON 1
NI 170160 Pump O Ring 07-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 130200 Converter Seal 38 ID x 57 OD x 7.00mm 07-ON 1
NI 130210 Axle Seal Lefthand & Righthand 39 ID x 58.20 OD x 10.40mm 07-ON 2

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130250K Sealing Ring Kit 07-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130300K Friction Kit 07-ON 1
20B 170310 Underdrive 138 OD x 1.80mm x 28T 07-ON 4
22C 170310 Overdrive 138 OD x 1.80mm x 28T 07-ON 4
24C 170310 Reverse 138 OD x 1.80mm x 28T 07-ON 2
26E 170316 2-4 Clutch 154 OD x 2.10mm x 31T 07-ON 4
28E 170318 Low-Reverse 154 OD x 1.80mm x 32T 07-ON 5
30G 130320 Underdrive Direct Clutch Internal Teeth 113 OD x 1.52mm x 29T 07-ON 6
31G 130324 Underdrive Direct Clutch External Teeth 92.3 ID x 1.52mm x 30T 07-ON 6
32H 130328 Underdrive Low Clutch 121 OD x 1.82mm x 31T 07-ON 3

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 170360 Underdrive 115 ID x 1.70mm x 8T 07-ON 4
23C 130362 Overdrive 4 Notched Teeth 115 ID x 2.00mm x 8T 07-ON 3
25C 170360 Reverse 115 ID x 1.70mm x 8T 07-ON 1
27E 130366 2-4 Clutch 133.5 ID x 2.50mm x 16T 07-ON 3
27E 130368 2-4 Clutch 133.5 ID x 1.70mm x 16T 07-ON 1
29E 130366 Low-Reverse 133.5 ID x 2.50mm x 16T 07-ON 1
29E 130368 Low-Reverse 133.5 ID x 1.70mm x 16T 07-ON 4
33H 130378 Underdrive Low Clutch 104.5 ID x 1.72mm x 42T 07-ON 3

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130400K Bush Kit 07-ON 1
40A 150410 Pump Body Bush Babbit 07-ON Alt
40A 150410A Pump Body Bush Bronze 07-ON 1
40A 73410 Pump Body Bush Bronze with Dimples 38 ID x 41.2 OD 07-ON 1
41A 170416 Input Shaft Bush 07-ON 1
42A 25426 Input Clutch Hub Bush 07-ON 1
45D 170428 2-4 Clutch Hub Bush Front 07-ON 1
46D 170428 2-4 Clutch Hub Bush Rear 07-ON 1
422C 170422 Bush Overdrive Hub 07-ON 2
NI 170420 Overdrive Hub Bush 07-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170450K Thrust Bearing Kit Contains Bearings for Sections A to E 07-ON 1
Kit 170452K Thrust Washer Kit (Without Selectives) 07-ON 1
65C 170464D Overdrive Clutch Hub Selective 3 Slot 1.80mm 1.80mm 07-ON AR
65C 170464E Overdrive Clutch Hub Selective 3 Slot 2.24mm 2.24mm 07-ON AR
65C 170464F Overdrive Clutch Hub Selective 3 Slot 2.47mm 2.47mm 07-ON AR
490J 130490 Transfer Shaft Bearing Cup & Cone Set 63.3 ID x 92 OD x 14.40mm 07-ON 1
490J 130490K Transfer Shaft Bearing Cup & Cone Set 63 ID x 92 OD x 14.00mm 07-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55K 130550 Filter 07-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130550K Filter Kit 07-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130570K Piston Kit 07-ON 1
Kit 26588K Accumulator Piston Kit (Pack of 5) 07-ON 1
Kit 26589 Accumulator Piston Kit 07-ON 5
Kit 26590 Accumulator Piston Kit (Pack of 5) 07-ON 1
61B 170580 Underdrive Balance Piston 07-ON 1
62E 130574 2-4 Moulded Piston 07-ON 1
63E 170576 Low & Reverse Moulded Piston 07-ON 1
64G 130580 Underdrive Direct Balance Piston 07-ON 1
65G 130584 Underdrive Direct Moulded Piston 07-ON 1
66H 130588 Underdrive Low Apply Piston 07-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 170630K Snap Ring Kit 07-ON 1
675G 130675 Underdrive Sungear to Transfer Shaft Circlip 23mm ID, 3 Tabs 07-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
60B 170652 Overdrive & Reverse Diaphragm Spring 07-ON 1
654E 130654 Low Clutch Return Spring 105 OD x 1.40mm 07-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70K 130700 Solenoid Block 07-ON 1
71K 130702 VFS (EPC) Solenoid 07-ON 1
72K 130710 Transmission Range Sensor (DTR) 07-ON 1
73K 130732 Transfer Speed Sensor 07-ON 1
74K 130730 Input Speed Sensor 07-ON 1
74K 130730 Output Speed Sensor 07-ON 1
75K 130740 Pressure Transducer Switch 07-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130790K Selector Shaft Saver Kit 07-ON 1
Kit 25762K TCC Control & Plunger Kit 07-ON 1
Kit 26793K Solenoid Switch Valve Plug Kit .453" 07-ON 1
Kit 42765K Cooler Bypass Delete Kit, TransGo 07-ON 1
86E 25770 Low & Reverse Retainer Small Hole 07-ON 1
89J 130785 Transfer Gear Shaft Nut 07-ON 1
NI 26782K 0.420" Switch Valve Repair Kit with Tool 07-ON 1
NI 26784K 0.420" Switch Valve Repair Kit (Refill Kit) 07-ON 1
NI 26786K 0.453" Switch Valve Repair Kit with Tool 07-ON 1
NI 26788K 0.453" Switch Valve Repair Kit (Refill Kit) 07-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130800K Shift Kit 07-ON 1
Kit 130810K High Pressure Tuneless Reprogramming Kit 07-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 130920KU Planetary Kit Used 07-ON 1
90A 130900 Pump with 6 Bolt Body to Case 07-ON 1
90A 130900U Pump (Used) 07-ON 1
92C 170940 Overdrive Clutch Hub 07-ON 1
93D 170944 Front Sungear 07-ON 1
94D 170946 Front Planet Assembly 07-ON 1
95D 170950 Annulus Rear Planet 07-ON 1
96D 170948 Rear Sungear 07-ON 1
97D 130954 Rear Planet 5 Pinion 07-ON 1
98H 130960 Underdrive Direct Drum 07-ON 1
99H 130950 Low Clutch Drum with Modified Rings 07-ON 1
910B 170910KU Input Drum Kit, fits 62TE except input shaft and reluctor wheel 07-ON 1
920D 130920KA Gear Train Contains Front & Rear Planets, Sungear & Ringear No Bearings or Washers 07-ON 1
930E 130930 Centre Support & 2-3 Piston 07-ON 1
980F 130980KR Compound Assembly (Contains Lines G, H & J) 07-ON 1
990K 130990 Feed Tubes - 3 Pieces 07-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
988K 130988U Valve Body 07-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
NI 49991-22 LUBEGARD COMPLETE FULL SYNTHETIC (22.7L) AR
